      Gilbarco Passport BackOffice Configuration

      The purpose of this article is so that PJR Files generate to the XML Gateway (BoOutBox Folder)



      Go to the Manager Workstation from the Passport.



      From the Gilbarco Passport, Select Tools > Select Manager Workstation

      Select Login > Sign in with Manager or Admin credentials

              IMG_1526         IMG_1527

      Select Setup > Store

      IMG_1528.          IMG_1529



      Select Back Office > Back Office Interface
      IMG_1530.        IMG_1531

      For Interface Format - Click the Dropdown and Select "NACS XML v3.4"

      IMG_1532

      Documents Tab

      • Store Close Column should have everything checked
      • Shift Close Column should be Blank

      IMG_1533

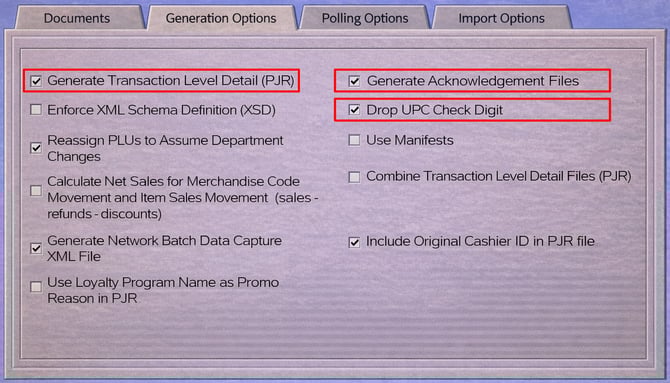

      Generation Options Tab - Check the following boxes

      • Generate Transaction Level Detail (PJR)
      • Generate Acknowledgement files
      • Drop UPC Check Digit

      IMG_1534

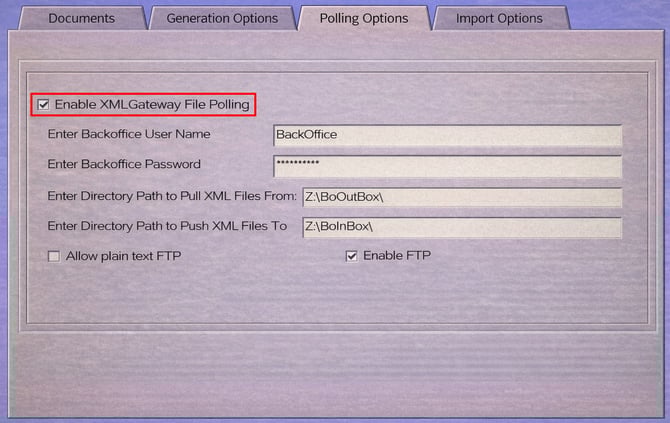

      Polling Options Tab

      • Enable XML Gateway File Polling - Check the box
      • Enter the Following
        • Backoffice Username: BackOffice (B capital, O capital)
        • Backoffice Password: BackOffice (B capital, O capital)
        • Directory Path to Pull XML Files From: Z:\BoOutBox\
        • Directory Path to Push XML Files To: Z:\BoInBox\

      IMG_1538

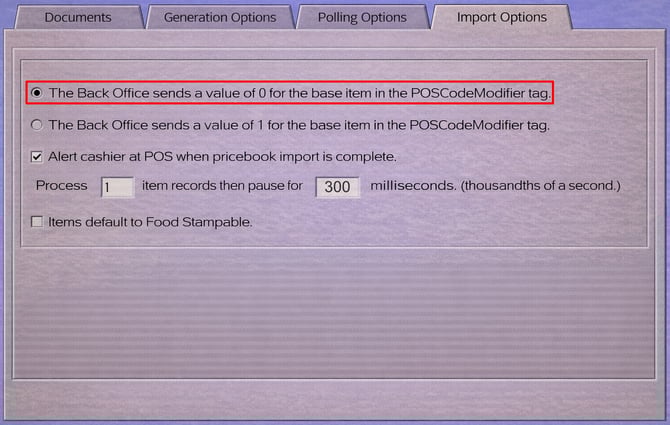

      Import Options Tab

      • Check the box: The Back Office send a value of 0 for the base item in the POSCodeModifier tag

      IMG_1541

      Save and Finish

      • Click Save, then ok, then yes and yes one more time. You're done!
        • Have a LottoShield rep check to see if PJR Files are showing up in the BoOutBox
